- -5%

Admite procesadores AMD Ryzen™ 5000 Series/ Ryzen™ 4000 G Series/ Ryzen™ 3000 Series/ Ryzen™ 3000 G Series/ Ryzen™ 2000 Series/ Ryzen™ 2000 G Series
DDR4 sin búfer ECC/no ECC de dos canales, 4 DIMM
Active OC Tuner presenta cambio dinámico entre P.B.O. y configuración manual de OC
Solución de VRM digital de Infineon directa de 14+2 fases con etapa de potencia de 70 A
Solución térmica avanzada con Fins-Array II, Direct Touch Heatpipe II, M.2 Thermal Guard III y Thermal Backplate
WiFi Intel® 6E 802.11ax y BT 5.2
Quad NVMe PCIe 4.0/3.0 x4 M.2 ultrarrápido con protectores térmicos
LAN ultrarrápida Intel® 2.5GbE
SuperSpeed USB 3.2 Gen 2x2 TYPE-C® ofrece velocidades de transferencia de hasta 20 Gb/s
Smart Fan 6
RGB FUSION 2.0
Q-Flash
Compra en Tienda Entrega Inmediata
Compra Online Retiro Inmediato
Productos 100% Originales y Nuevos
Brand | GIGABYTE |
---|---|
Model | X570S AORUS MASTER |
CPU Socket Type | AM4 |
---|---|
CPU Type | Supports AMD Ryzen 5000 Series / 4000 G-Series / 3000 Series / 3000 G-Series / 2000 Series / 2000 G-Series Processors |
Chipset | AMD X570 |
---|
Onboard Video Chipset | Supported only by CPU with integrated graphic |
---|
Audio Chipset | Realtek ALC1220-VB codec * The front panel line out jack supports DSD audio. |
---|---|
Audio Channels | 7.1 Channels |
LAN Chipset | Intel 2.5GbE LAN chip |
---|---|
Max LAN Speed | 10/100/1000/2500Mbps |
Wireless LAN | Intel Wi-Fi 6E AX210 WIFIa,b,g,n,ac,ax |
Bluetooth | Bluetooth 5.2 |
Onboard USB | 1 x USB Type-C header, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers |
---|---|
Other Connectors | 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 4 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x noise detection header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Thunderbolt add-in card connector 2 x temperature sensor headers 1 x power button 1 x reset button 1 x Clear CMOS jumper Voltage Measurement Points |
Form Factor | ATX |
---|---|
LED Lighting | RGB |
Dimensions (W x L) | 12.0" x 9.6" |
Power Pin | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors |
With upgraded power solution, comprehensive thermal design, and intuitive utility for tweaking, the X570S AORUS MASTER is expertly engineered to reign supreme on the latest AMD Ryzen processor platform. PCIe Gen4 M.2 slot and 20 Gbps USB fully support new gen SSDs and peripherals, while WiFi 6E and 2.5 GbE LAN take network performance to the next level. On top of all that, the X570S AORUS MASTER dazzles with classy PCB design and meticulously crafted heatsinks complemented by awesome onboard RGB lighting.
GIGABYTE X570S Motherboards are equipped with best in class power solution to release the full potential of the latest AMD Ryzen 5000 Series CPUs. The VRM power design includes MOSFETs which identify Vcore and SOC accompanied by digital PWM, premium chokes and high quality capacitors to offer extraordinary stability and precision to the high performance CPU. In addition, Six-layered PCB and comprehensive thermal solution allows enthusiasts to enjoy the extreme overclocking performance without compromise.
With GIGABYTE's exclusive Active OC Tuner BIOS function, CPU* can work with AMD P.B.O. for gaming and other light workload applications with the highest CPU boost clock, but when the applications require all CPU cores’ horsepower, it automatically switches to the Manual OC mode where it can utilize the high frequency for all the CPU cores.
?Active OC Tuner switches profile based on user scenario automatically ?5% performance increase
* Only available on selected AMD Ryzen processors with P.B.O. function featured.
With the optimized daisy-chain routing, GIGABYTE X570S motherboards provide a proven speed of up to DDR4-5400+ MHz with high density memory modules*. Optimized daisy-chained routing eliminates the stub effect, pushes the one DIMM per channel in dual channel interleaving mode to hit higher memory frequencies, and provides professional gamers a denser and faster system memory experience.
* Performance may vary in circumstances. Please refer to the QVL list for detail support information.
AORUS is offering a tested and proven platform that ensures proper compatibility with profiles up to 5400 MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard.
* XMP Profile support may vary depending on memory module.
With populated 4 DIMMs per channel on GIGABYTE X570 motherboards, the maximum memory capacity support is 128GB. For users who always run out of memory capacity, they are able to enjoy more bandwidth now for memory-intensive application such as rendering and video editing.
Fins-Array II uses brand new louvered stacked fins technology which is usually only used on industrial equipment that needs compact heat exchangers. It has a special secondary fins structure that enhances heat transfer performance.
Heat flow that goes through fins will enter from the leading edge of the louver and is then directed by other louvers or fins. This louver directed flow can greatly improve heat transfer performance.
Because of pressure difference and flow separation, a circulation zone will be formed between louvered fins. This circulation will cause flow to entrain and eject in the vortice form which improves thermal efficiency.
As CPUs get more powerful, VRM modules get hotter under ultra high performance. Being the first adopters among industry using NanoCarbon as coating material to enhance thermal radiation speed up heat dissipation. Nanocarbon is coated onto the heatsink through electrostatic adhesion. The coating material covers the entire finned heatsink with 200µm in thickness. In that way, heat is dissipated more quickly. The tests show 10% cooler with the NanoCarbon coating.
With an extra large 8mm heatpipe and made by a new manufacturing process which has narrowed down the gap between the heatpipe and heatsink. The new Direct-Touch Heatpipe II greatly helps to dissipate the heat on MOSFETs.

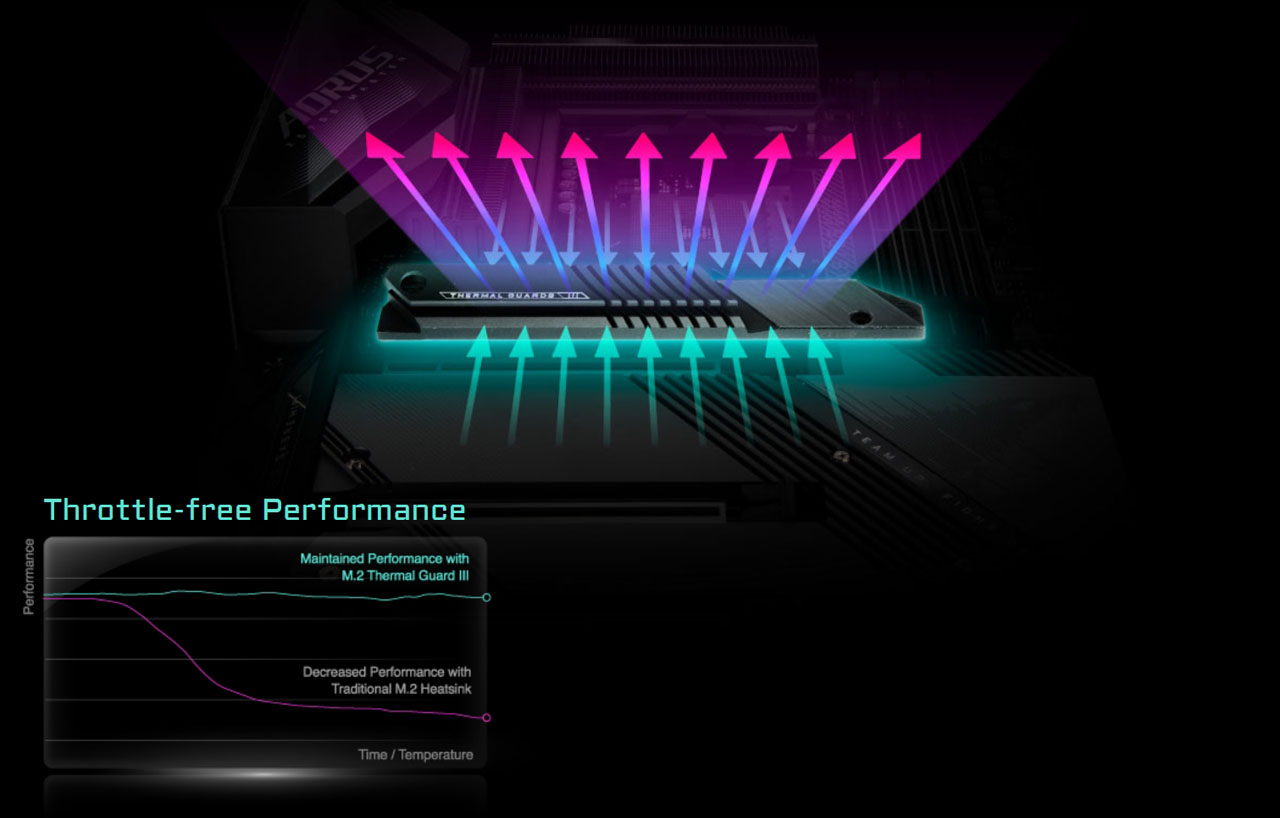

Continuing the advantages of M.2 Thermal Guard II design which uses the double-sided thermal pads to elevate the height of M.2 heatsink to increase surface area to dissipate heats on M.2 SSDs. M.2 Thermal Guard III is constructed with 2.6X optimized heat dissipation surface to prevent throttling and bottleneck that high-speed/ large capacity of PCIe 4.0 M.2 SSDs may cause, especially under heavy workload.
GIGABYTE motherboards promise the consistent cooling and high performance for users to avoid throttling from the overheating.
* The result is based on internal lab test for reference only. Real performance may vary. Test conditions are under open case, 25°C ambient temperature, no airflow, and AIO Cooler and the latest Gen4 7000 SSD running IO meter for two hours.
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintains its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
High Current Support
Each fan headers support PWM and DC fan and Water Cooling Pump, and up to 24W (12V x 2A) with Over-Current Protection
Precision Control
Up to 6 temperature/fan speed control points for precise fan curve
Dual Curve Mode
Slope/Stair dual mode for different user scenario
Fan Stop
Fan can stop completely below users' specified temperature point

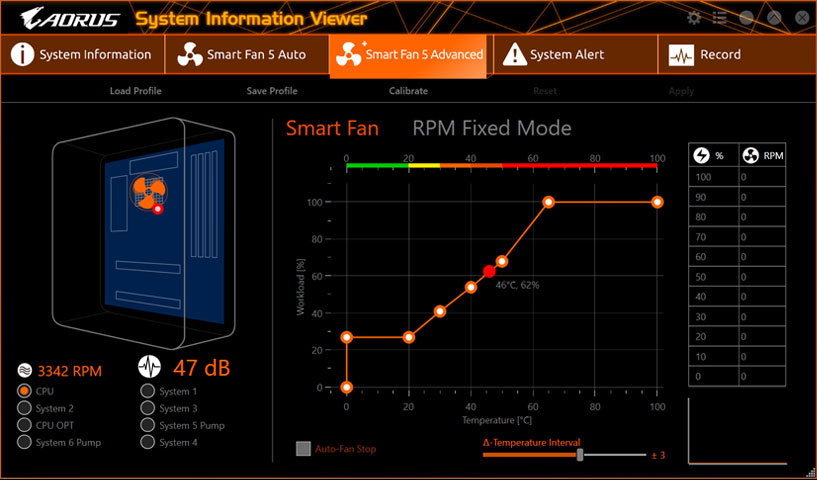

1. Improve fan curve UI
We increase control points from 5 to 7 and larger fan speed graph for precise and easier fan curve control.
2. Slope/Stair dual graph mode
Fan curve can be quickly switched with Slope and Stair modes for different user scenarios. Slope is traditional and intuitive linear fan speed curve. With newly added Stair non-linear mode, fan keeps at same speed between specified temperature interval.
3. Manual Input
For advanced users, we provide fan speed manual input for more precise control.
4. EZ Tuning
User can place 4 EZ Tuning points at rough temperature/fan speed, and Smart Fan 6 can quickly generate a fan curve.
5.Fan curve profile
Fan curve profile can be saved in BIOS ROM. Profile will be kept after updating BIOS.

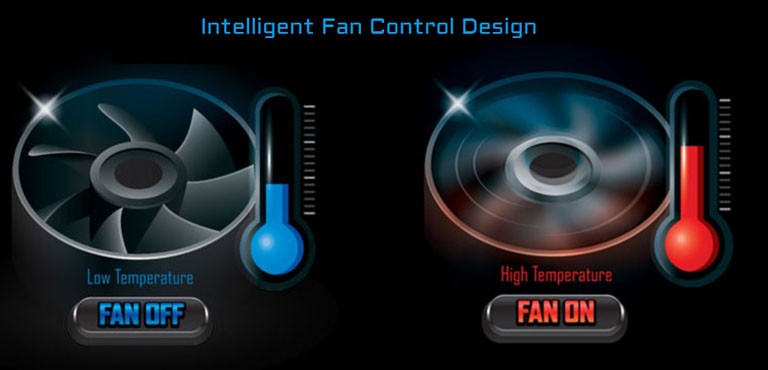

Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.
With the new Noise Detection function, you can monitor noise level of all devices including fans, CPU coolers, graphics card, etc. in real time, and you can determine how fast your fan speed needs to be. Our bundled Noise Detection cable doesn’t include any sound recording function, it simply detects sound pressure while protecting your privacy.
2X Faster than ever
GIGABYTE X570S AORUS MASTER AM4 AMD X570 SATA 6Gb/s USB 3.0
Admite procesadores AMD Ryzen™ 5000 Series/ Ryzen™ 4000 G Series/ Ryzen™ 3000 Series/ Ryzen™ 3000 G Series/ Ryzen™ 2000 Series/ Ryzen™ 2000 G Series
DDR4 sin búfer ECC/no ECC de dos canales, 4 DIMM
Active OC Tuner presenta cambio dinámico entre P.B.O. y configuración manual de OC
Solución de VRM digital de Infineon directa de 14+2 fases con etapa de potencia de 70 A
Solución térmica avanzada con Fins-Array II, Direct Touch Heatpipe II, M.2 Thermal Guard III y Thermal Backplate
WiFi Intel® 6E 802.11ax y BT 5.2
Quad NVMe PCIe 4.0/3.0 x4 M.2 ultrarrápido con protectores térmicos
LAN ultrarrápida Intel® 2.5GbE
SuperSpeed USB 3.2 Gen 2x2 TYPE-C® ofrece velocidades de transferencia de hasta 20 Gb/s
Smart Fan 6
RGB FUSION 2.0
Q-Flash
